Description
CAMERA: Sony FX6
DEPTH RATING: 40m/130ft with dome ports (flat ports are 20m depth rated)
Included Items

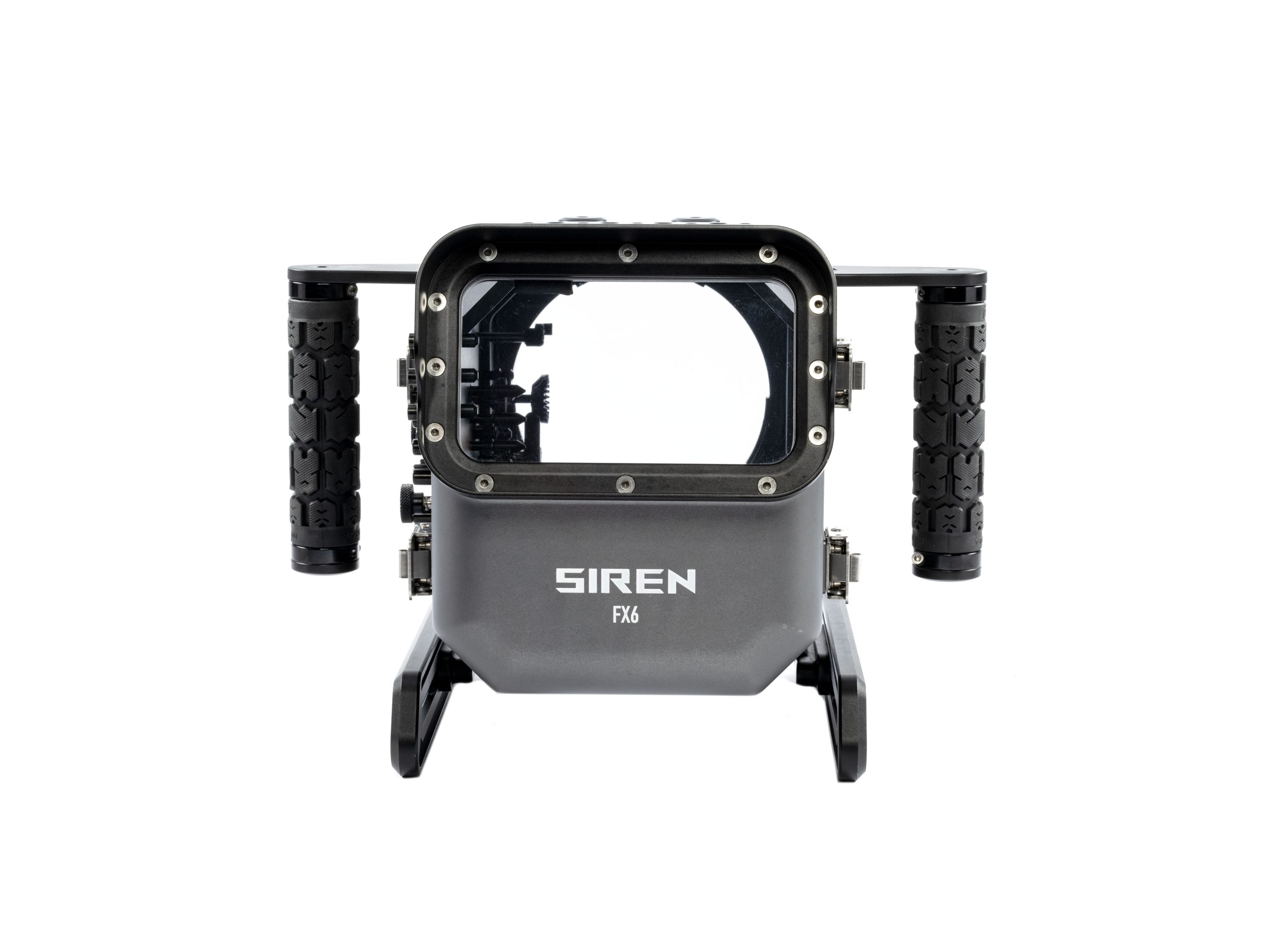

- Housing Shell for the Sony FX6
- SIREN XL Bayonet Port Base (PORTS NOT INCLUDED)
- 15 degree monitor back for Sony FX6 Monitor
- Custom monitor bracket
- Manfrotto compatible baseplate
- 2x Side Handles
- Silicone Grease
You must add a suitable port to make the housing functional.
Camera Configuration

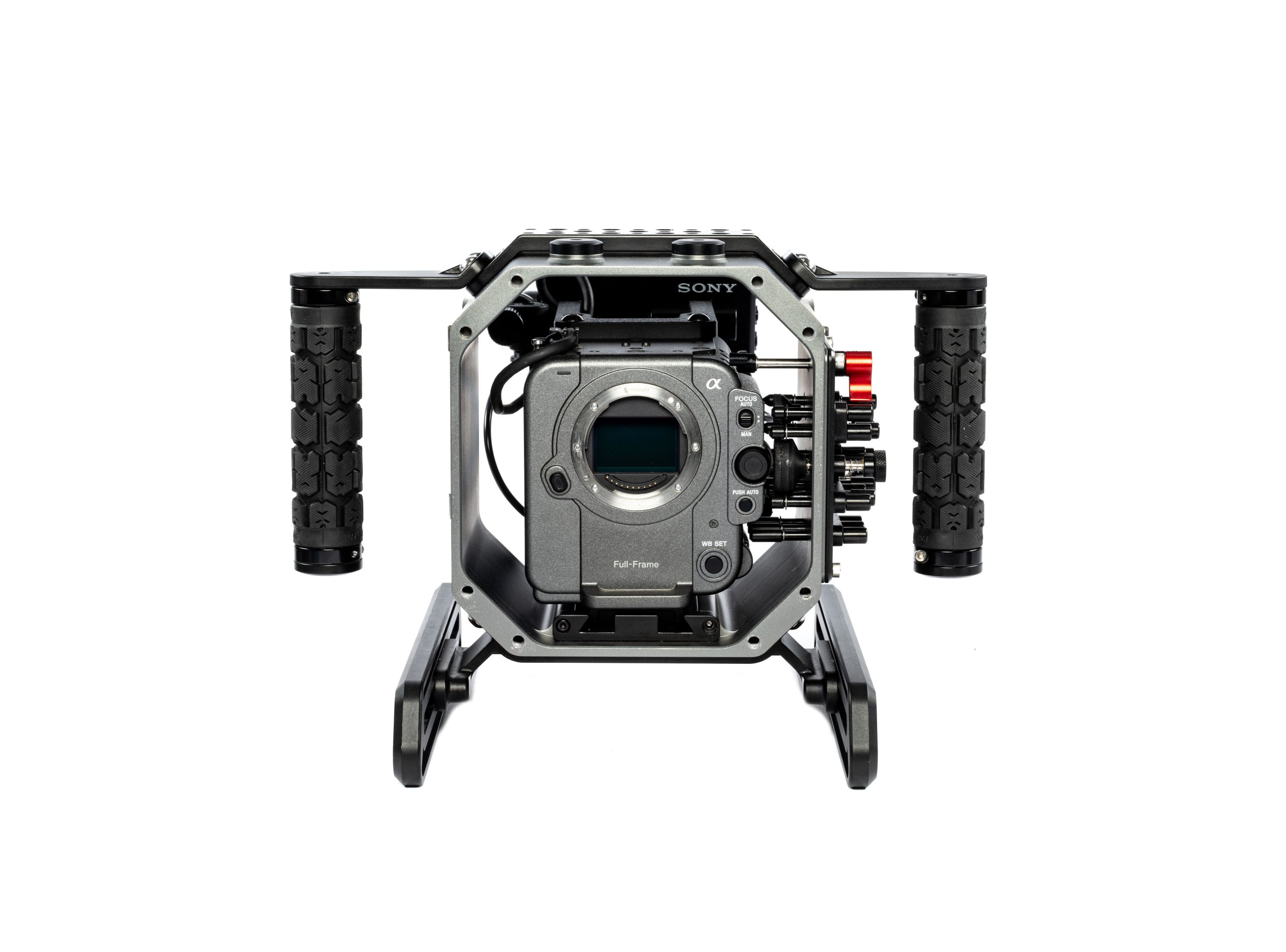

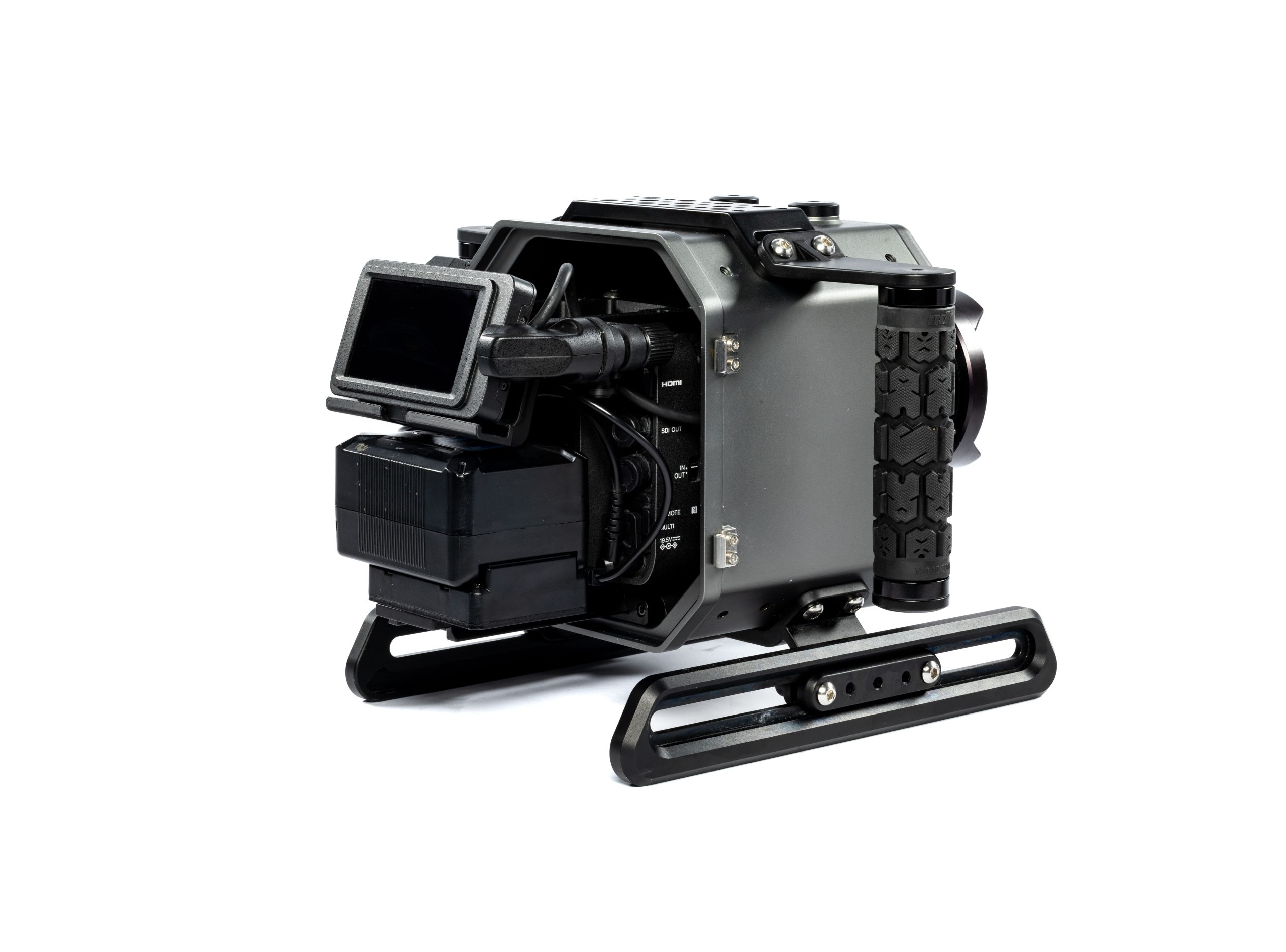

Our Sony FX6 housing is designed to work with:
- Sony FX6 Camera (with grip and side handle removed)
- Sony FX6 monitor (mounted to top of camera with supplied bracket)
- 1x FXLION NANO TWO 98Wh 6800mAh V-Mount V-Lock Battery
- 1x FXLION battery plate
Alternatively you can fit a Sony BP-U70 battery instead of using the FXLion Nano configuration.

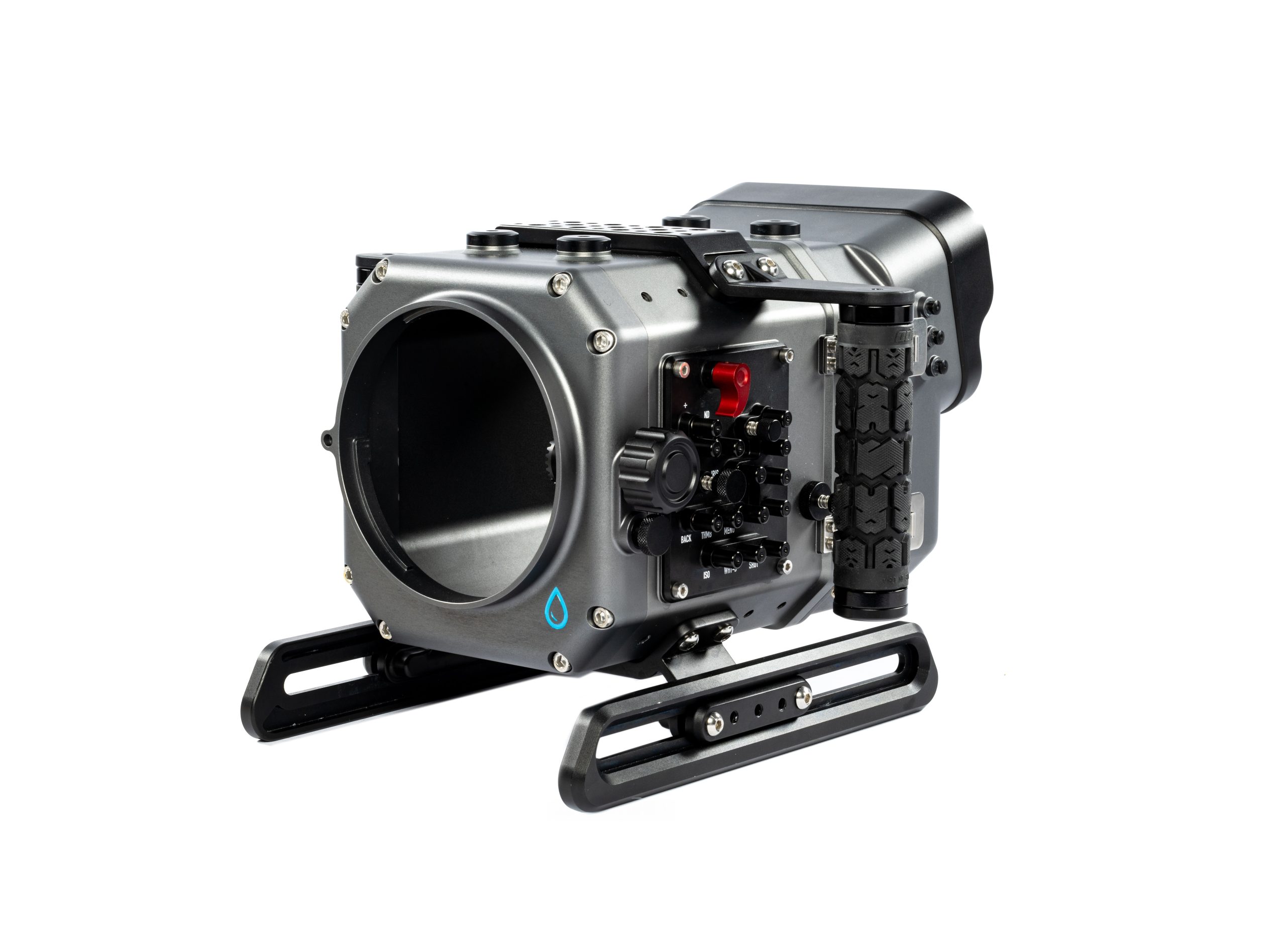

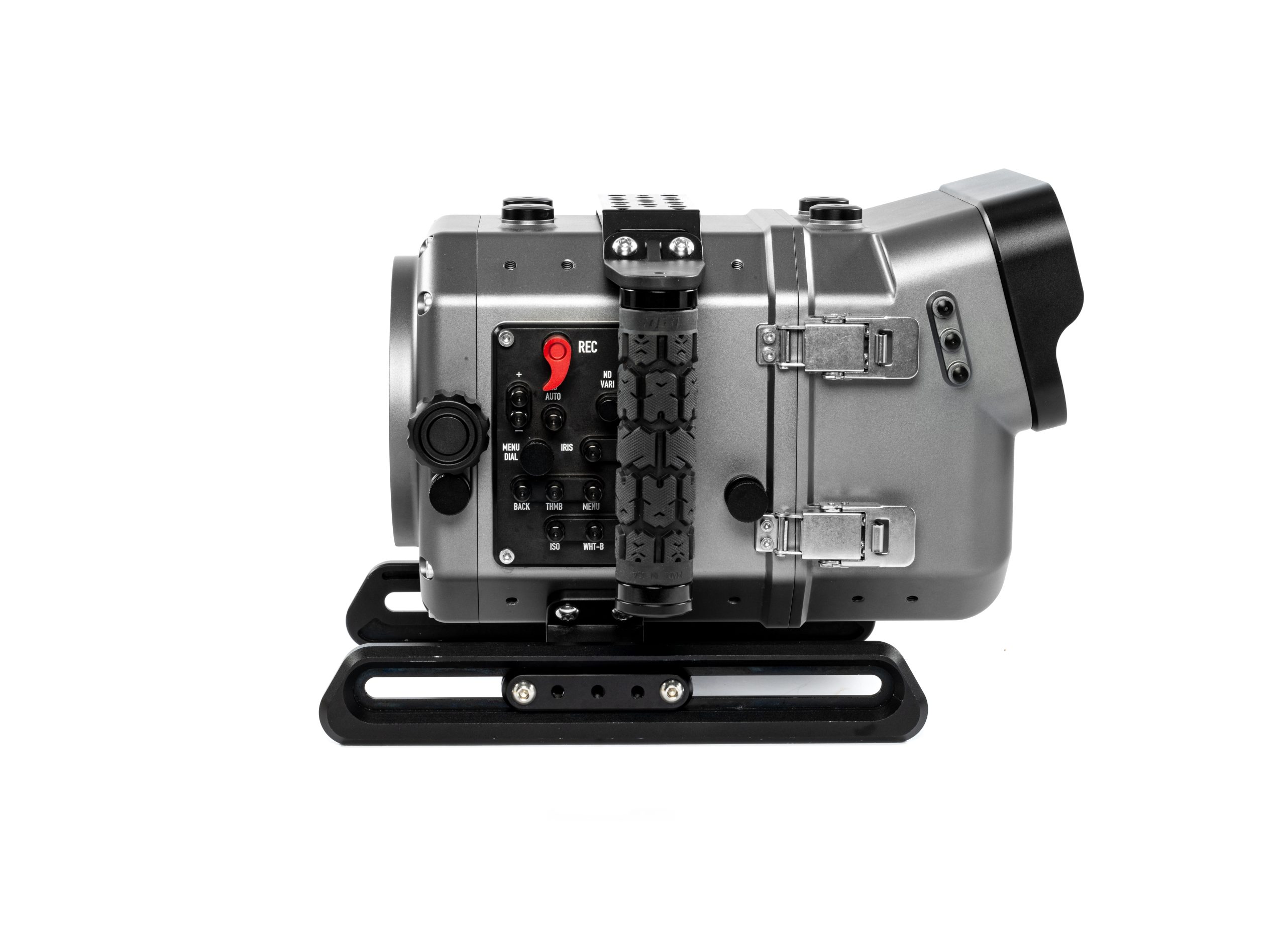

Controls
- Record Button
- Power Dial
- ND Auto Button
- ND Up Button
- ND Down Button
- ND Variable Dial
- Menu Dial
- Select Button
- Back Button
- Thumbnail Button
- Menu Button
- Iris Button
- #1 / S&Q Button
- #2 Button
- #3 Button
- Display Button
- ISO/GAIN Button
- WHT BAL Button
- SHUTTER Button
- Monitor Controls:
- Peaking Button
- Zebra button
- #9 / Assign Button
Construction

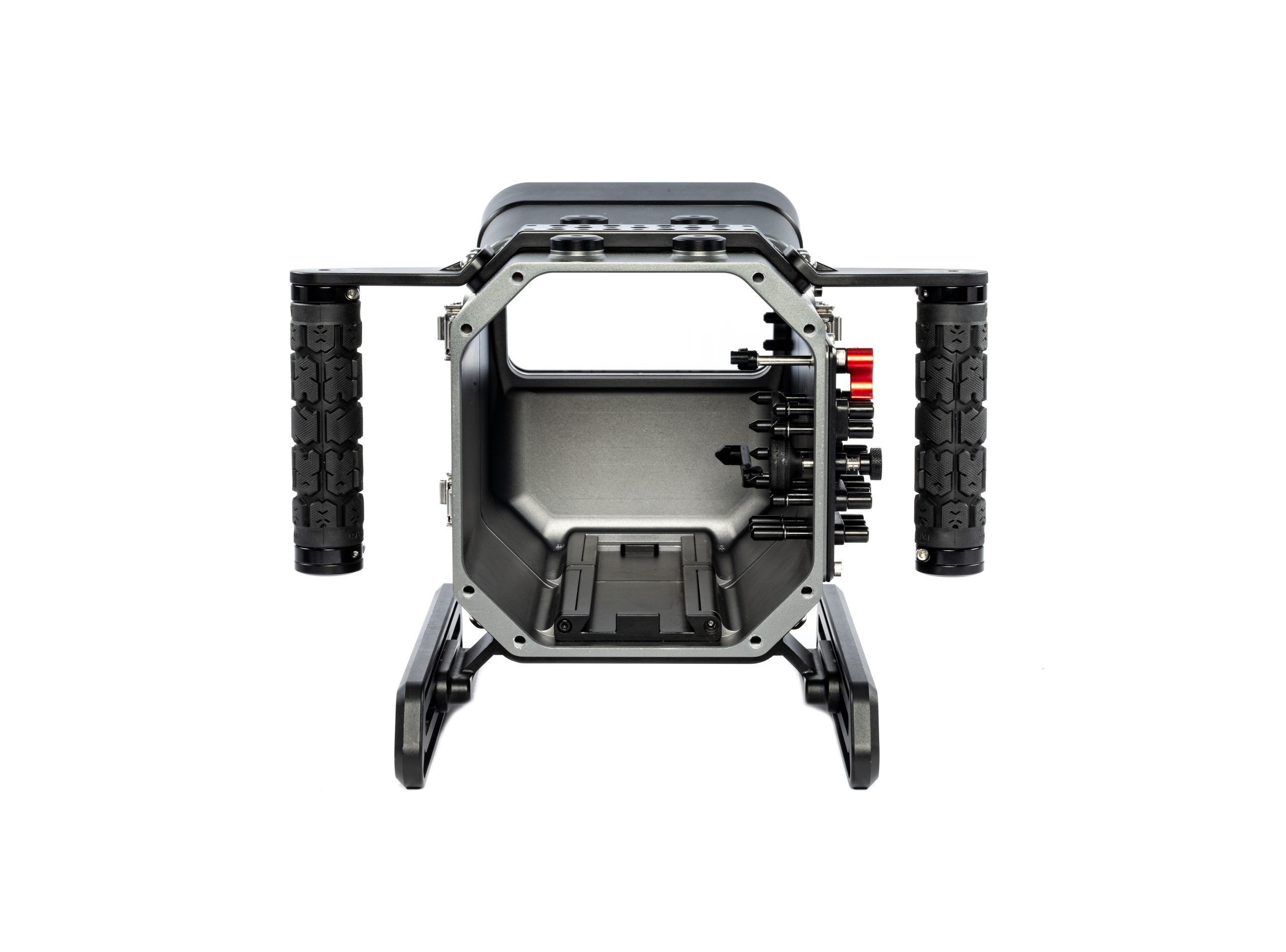

Housing Body: CNC machined from 6061 billet aluminium. Grey Anodised for corrosion resistance.
Buttons/Hardware: Marine-grade 316 stainless steel.
Port Options

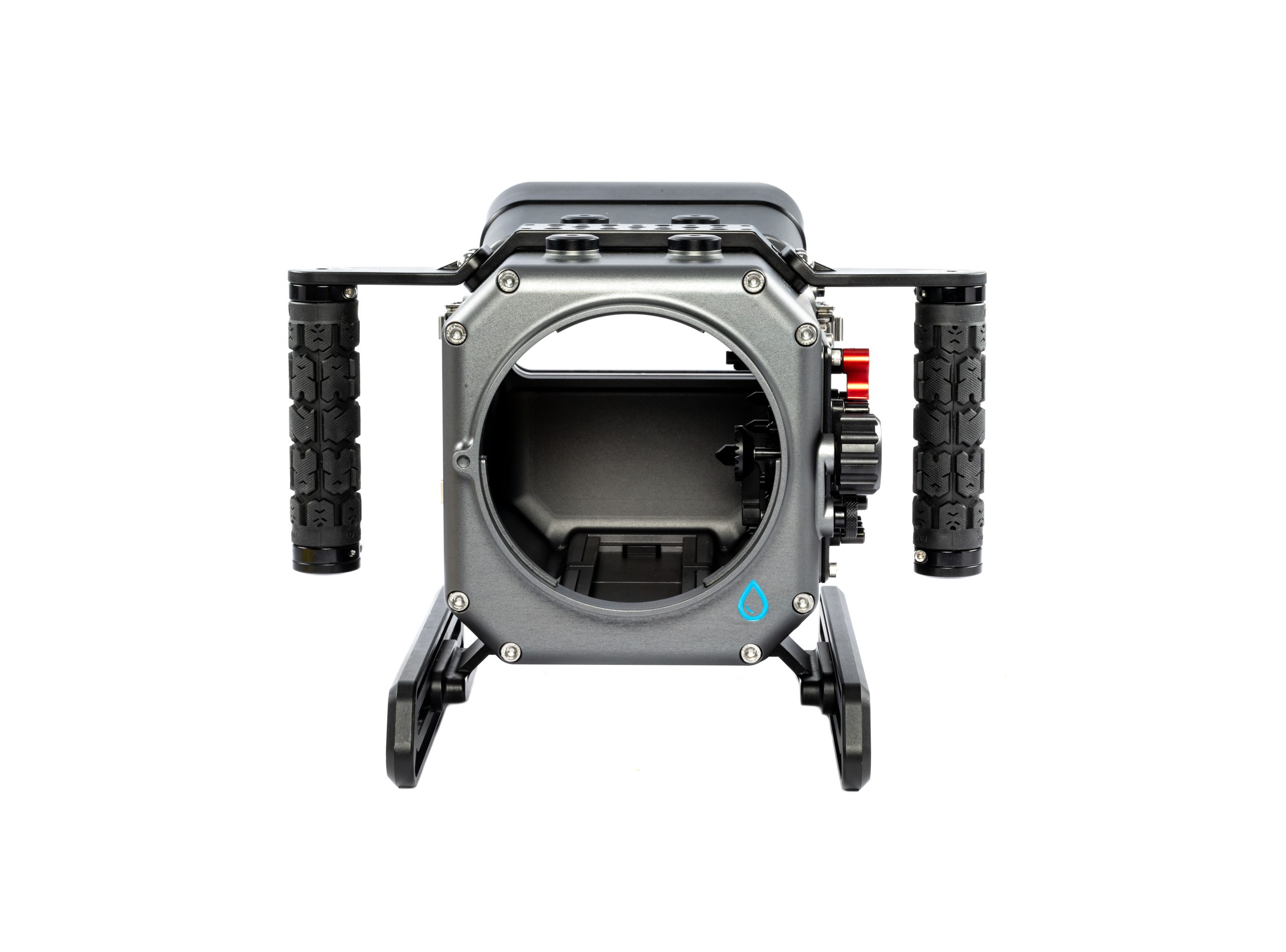

Salty’s SIREN models offer a stackable bayonet port system for seamless and flexible lens changes.
The Sony FX6 utilises the SIREN XL Bayonet Port System as standard, and can also be configured with a custom Titanium Nikonos Port Front.
Grips
The housing comes standard with two side handles included.
Paint
Our housings are anodised grey for corrosion resistance, however you also have the option of adding a highly durable two-pack paint finish.
The paint not only provides additional corrosion protection to your housing, but also provides an opportunity to customise the look of your housing.
You get to choose your colour(s)! And the options are almost endless.
You can choose a color from here, or from our Instagram page (@saltysurfhousings)
Learn more about our paint finishes here.
Leave a note in checkout, or send us an email to let us know your color preference.
Weight
Shell only = approx. 4kg
With dual side handles and port = approx. 5kg
Fully rigged with camera and battery = approx. 8.5kg
Depth Rating
40m / 130ft underwater with a dome port
20m/ 66ft underwater with a flat port
Optional Accessories
Nikonos Front
Skids
Trim Weights
Cheeseplate
