Description

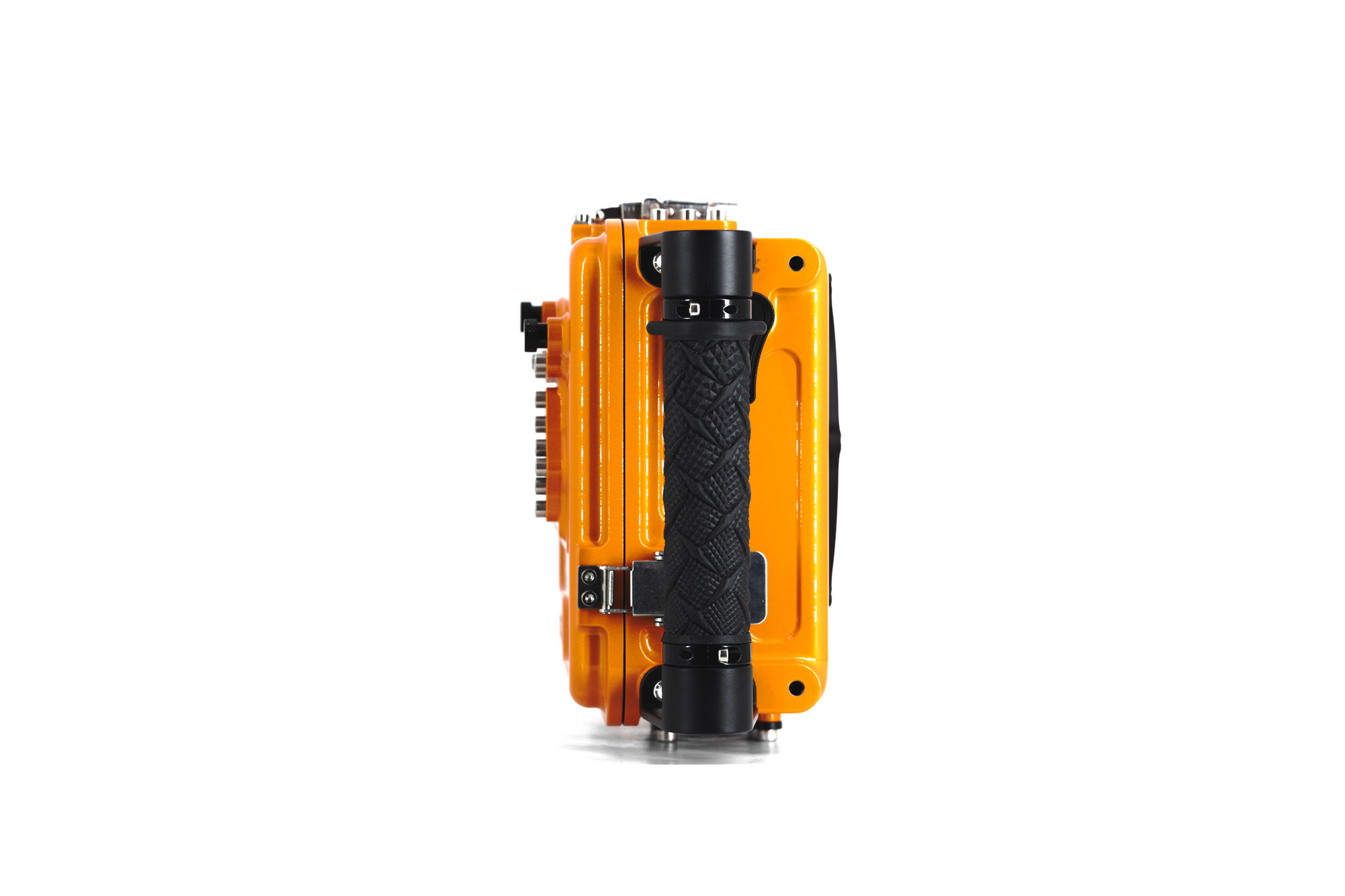

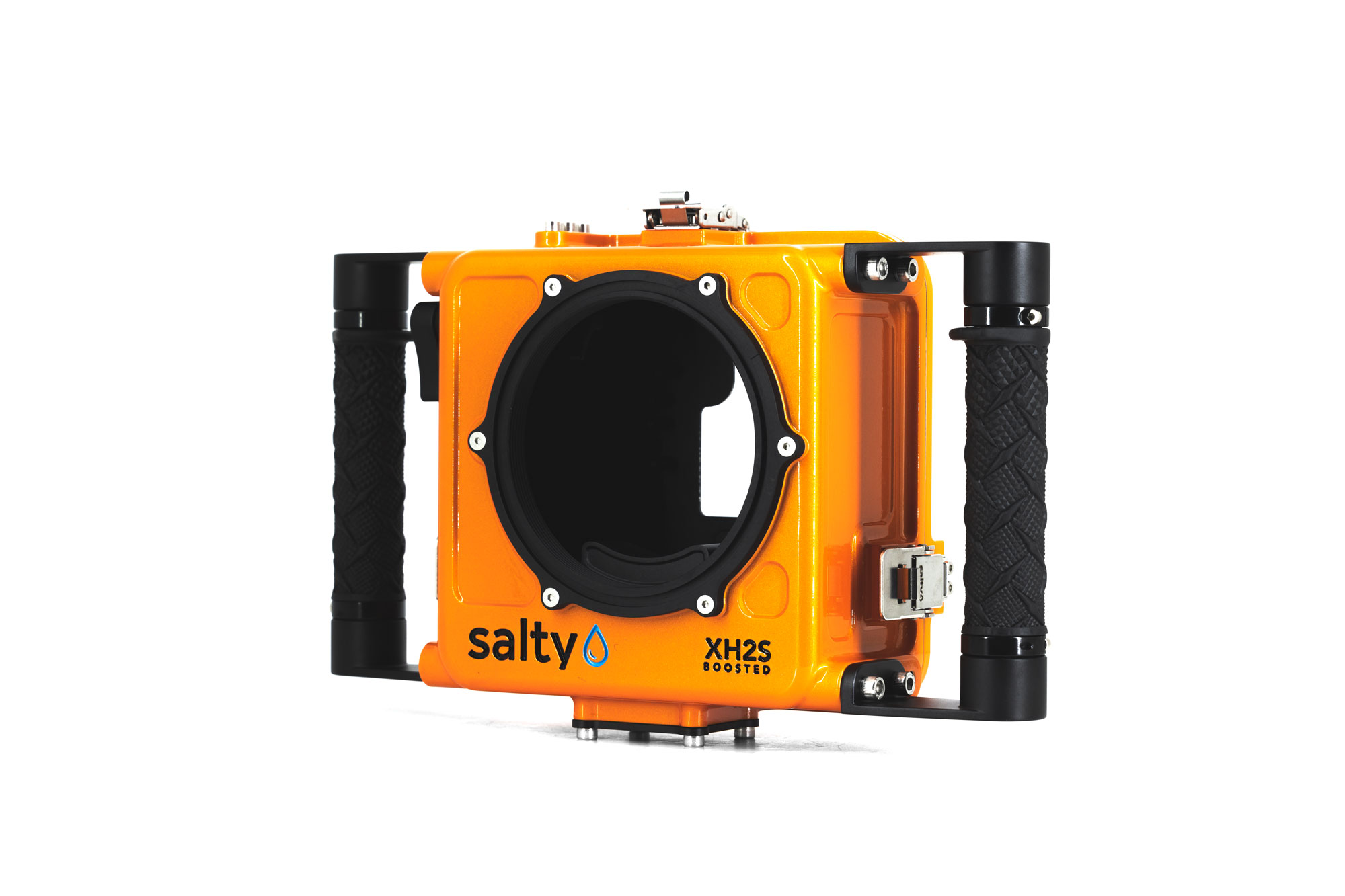

Underwater/Surf Housing for the Fujifilm X-XHS.
Our line of Boosted Water Housings offer compatibility with an external V-lock battery, offering extended time in the water.
This housing also features our newly designed arca-swiss compatible baseplate, allowing allowing you to manoeuvre from water housing to any arca-type tripod seamlessly.
Included
- Housing shell
- Dual Handle Grips
- 1x Port O-Ring
- 1x Housing Body O-Ring
- 1x 10mL Tube of Silicone Grease
You will need to purchase a port for the housing to be operational. This housing uses our Standard Port System.
Click here to browse port options.

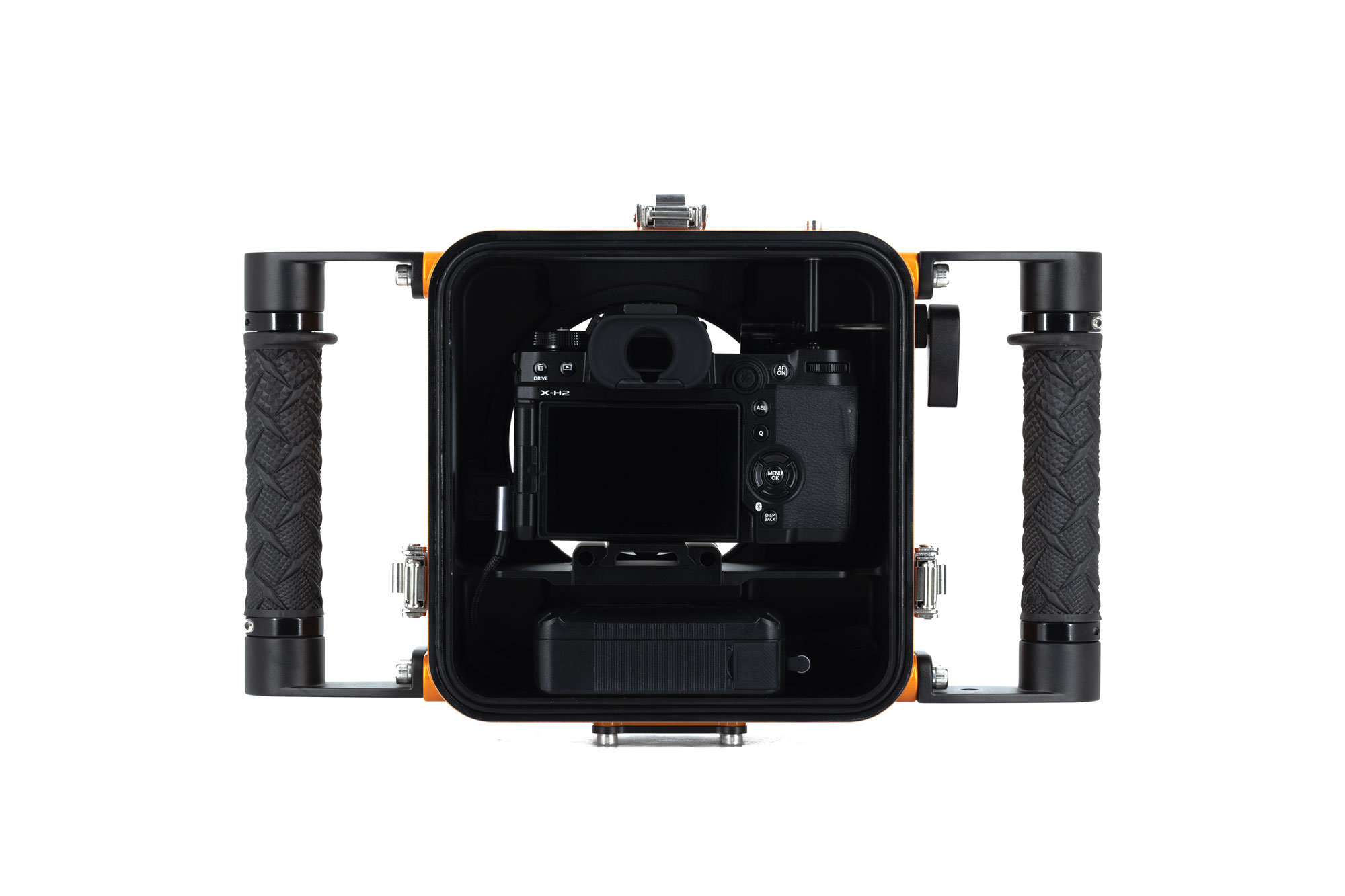

Camera Configuration
- Fujifilm X-H2S
- FXLion Nano One V-Lock Battery + USB-C Cable.
Although the housing is optimised for this configuration, you can rig other batteries in the housing compartment.
Maximum dimensions for external battery (not allowing for any cabling) = 65mm depth – 43mm height – 170mm width

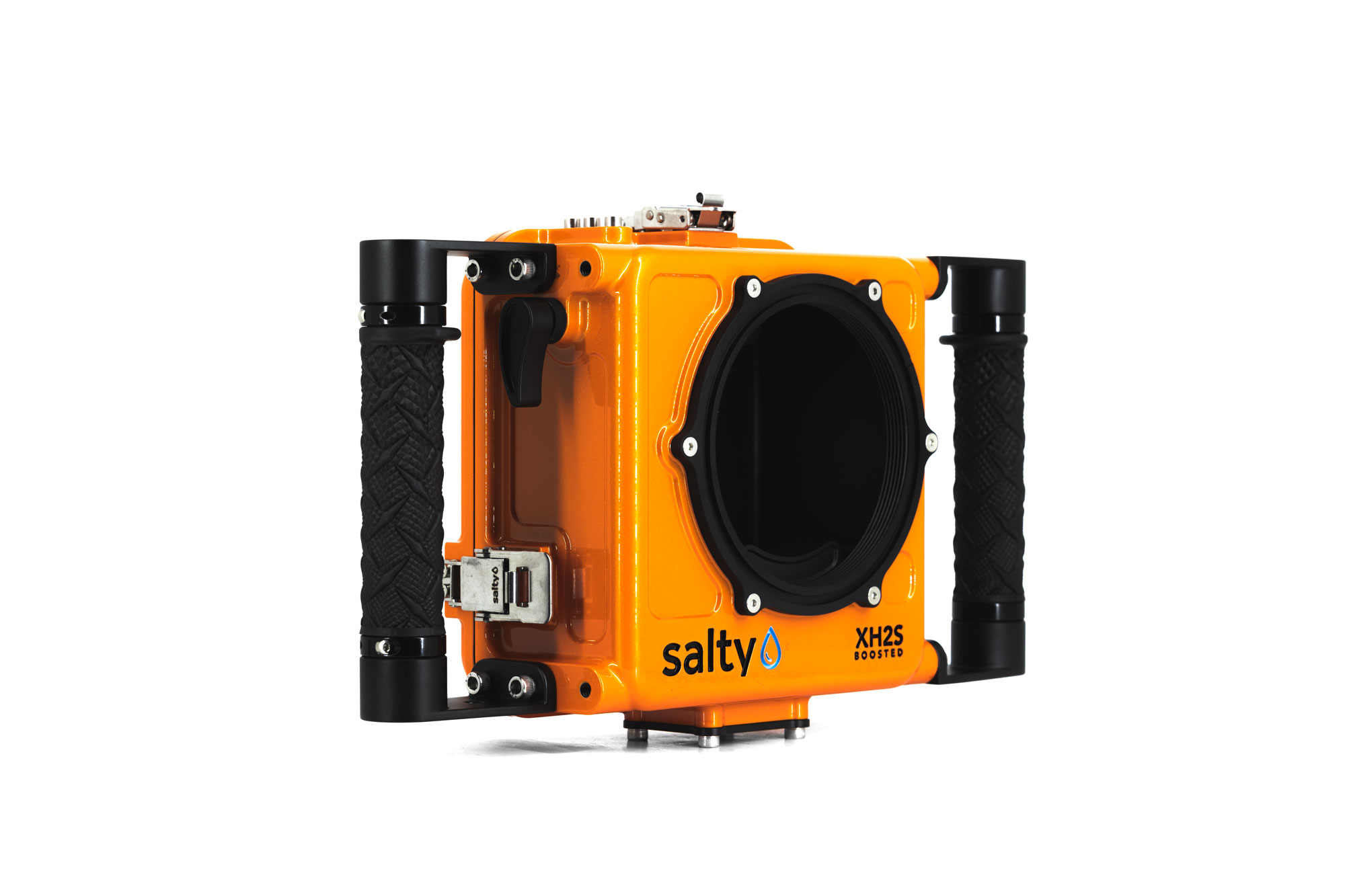

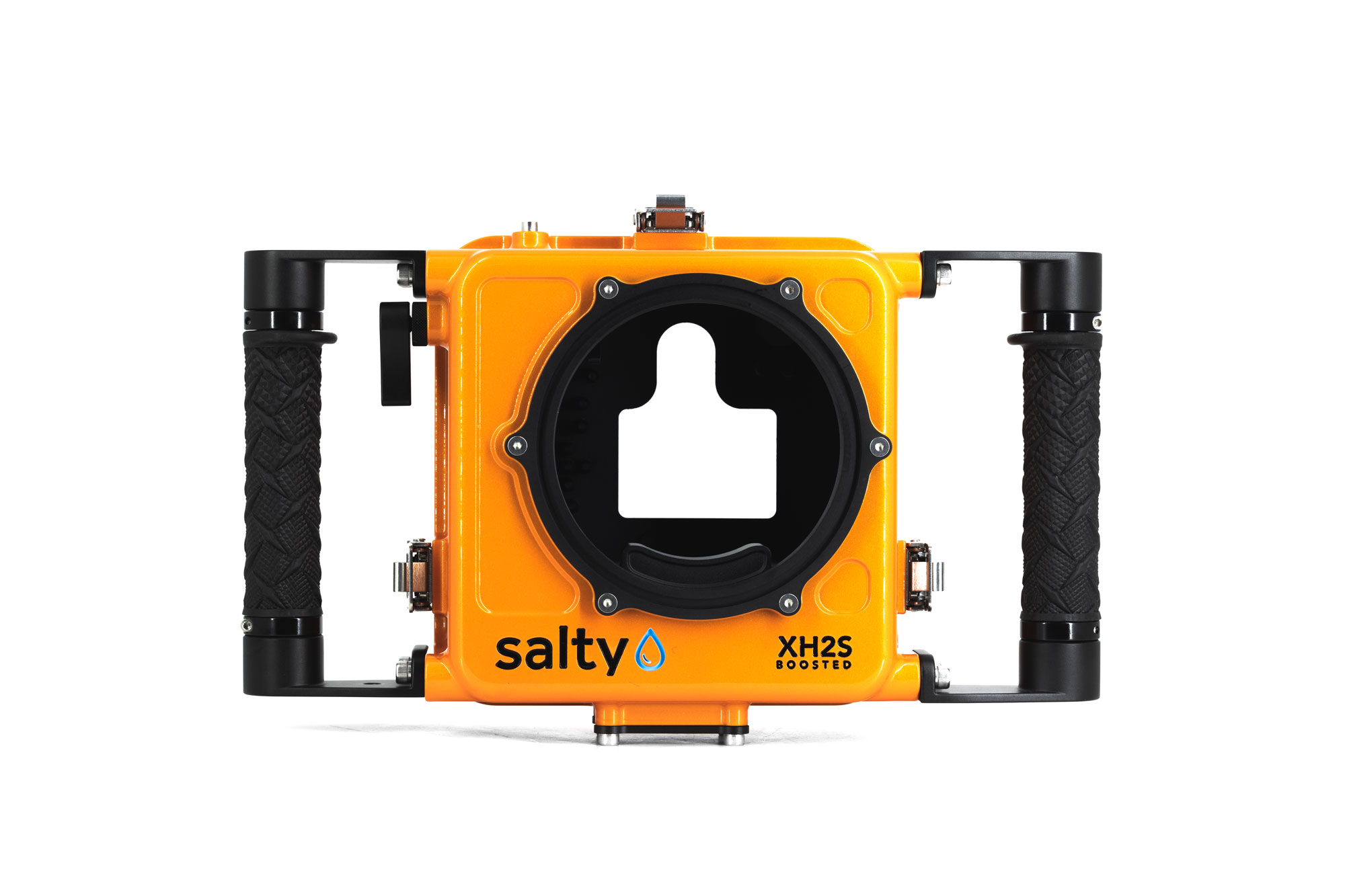

Ports
The X-H2S housing utilises our ‘STANDARD’ port system which fits lenses up to 105mm diameter.
Grips
Two side handles are included. A blanking plate is also included. If you would like to purchase a pistol grip, click here.

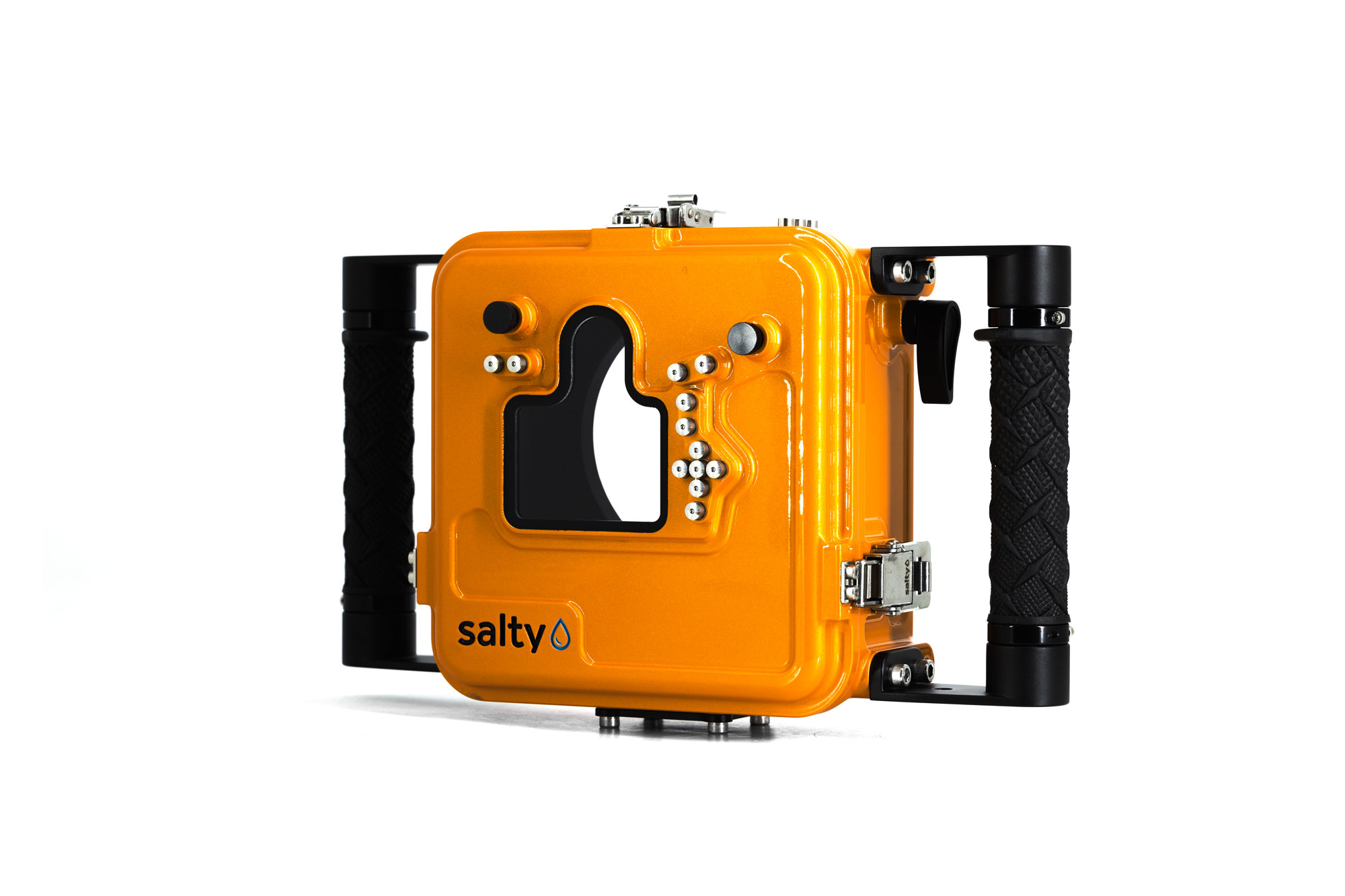

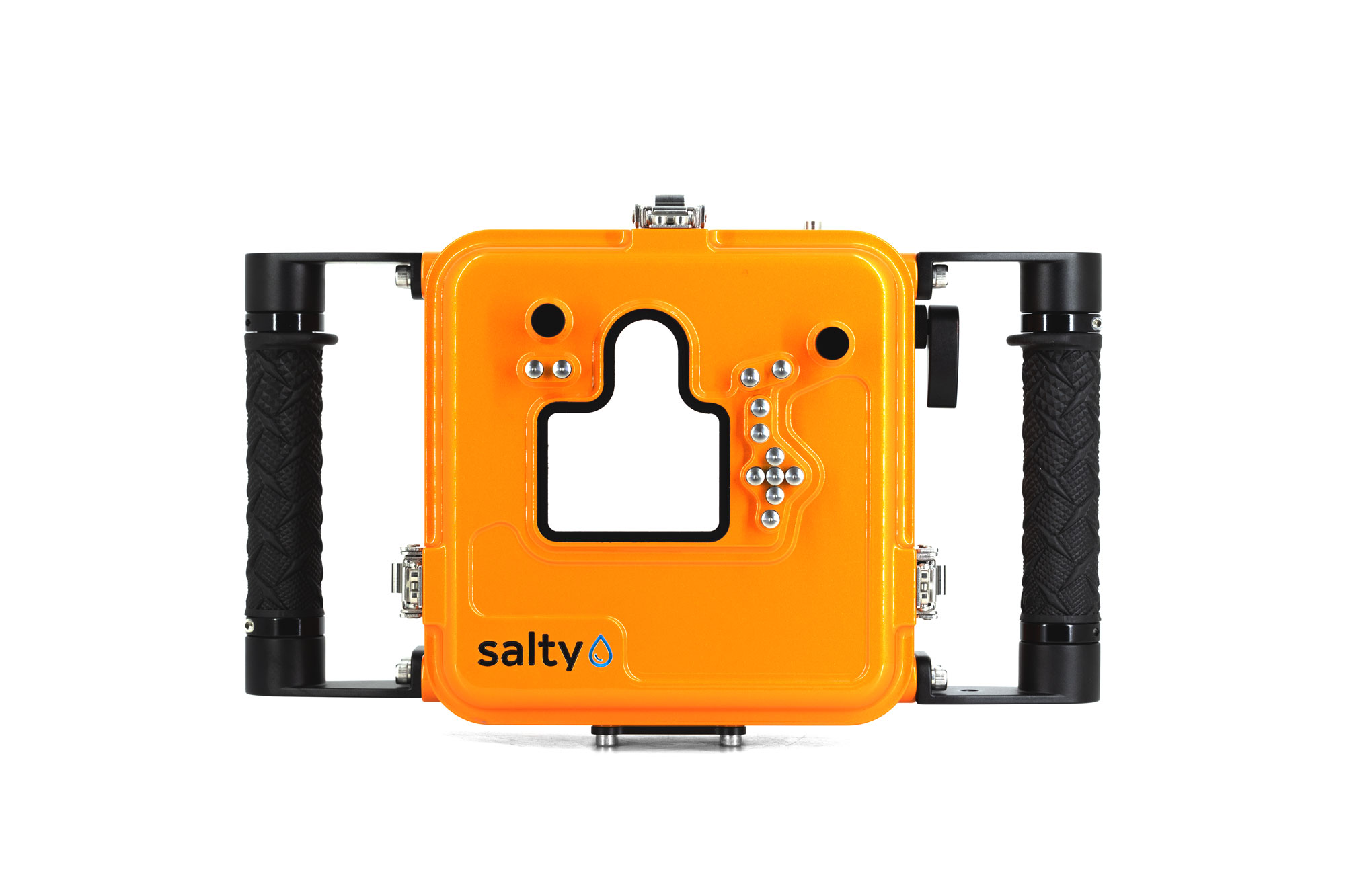

Controls
- Top shutter button (via side lever)
- Top Dial/Mode
- WB
- ISO
- Exp.
- Upper rear dial
- On/off (via side lever)
- Playback
- AEL
- AF ON
- Right press on multi toggle
- Q Menu
- Directional arrows
- Menu/ok
- Trash
- Disp/Back
Paint
Our housings are painted in a highly durable two-pack paint. The paint not only provides additional corrosion protection to your housing, but also provides an opportunity to customise the look of your housing.
You get to choose your colour(s)! And the options are almost endless.
Provide us with a Pantone color code for accurate color matching. Scroll through our Instagram page for some inspiration! (@saltysurfhousings)
Construction
CNC machined from a single piece of billet aluminium then anodised and painted. All buttons and hardware are 316 stainless steel, providing superior corrosion resistance.
Being an aluminium housing it acts as a giant heat sink to assist in managing overheating of the camera compared with a plastic housing like our competitors.
The housing features 3 quick release clips for closure. The clips are a two stage opening to prevent accidental opening.
Arca-Swiss baseplate compatibility means you can mount to any Arca-Type tripod, offering a streamlined work flow from water to land.
Depth Rating
20m / 66ft underwater
